# OpenPrism ### OpenPrism — Vibe Writing for Academia [](https://nodejs.org/) [](LICENSE) [](https://github.com/OpenDCAI/OpenPrism/stargazers) [](https://github.com/OpenDCAI/OpenPrism/network/members) [](https://github.com/OpenDCAI/OpenPrism/issues) [](https://github.com/OpenDCAI/OpenPrism/pulls) [中文](README_ZH.md) | [English](/) --- ### ✨ Highlights | 🤖 AI Assistant | ✍️ Compile & Preview | 📚 Templates | |:---:|:---:|:---:| | Chat / Agent history
Tools multi-step edits | TexLive / Tectonic / Auto
PDF preview & download | ACL / CVPR / NeurIPS / ICML
One-click conversion | | 🔄 Template Transfer | | | |:---:|:---:|:---:| | Legacy (LaTeX→LaTeX) / MinerU (PDF→MD→LaTeX)
LLM-powered migration + auto compile fix + VLM layout check | | | | 🔧 Advanced Editing | 🗂️ Project Management | ⚙️ Configuration | |:---:|:---:|:---:| | AI autocomplete / Diff / diagnose | Multi-project + file tree + upload | OpenAI-compatible endpoint
Local-first privacy | | 🔍 Search | 📊 Charting | 🧠 Recognition | |:---:|:---:|:---:| | WebSearch / PaperSearch | Chart from tables | Formula/Chart recognition | | 👥 Collaboration | 📝 Peer Review | | |:---:|:---:|:---:| | Multi-user real-time editing
Cursor sync & online management | AI Review Report / Consistency
Missing Citations / Compile Summary | | ---

📢 News

[!WARNING] 🚧 Template Transfer is under testing
The Template Transfer feature is currently in beta and may contain known or unknown bugs. If you encounter any issues, please report them via Issues.

[!TIP] 🆕 2025-02 · Template Transfer (Dual Mode)
Two transfer modes are now available: Legacy mode (LaTeX→LaTeX direct migration) and MinerU mode (PDF→Markdown→LaTeX via MinerU API). Both modes feature LLM-powered content migration, automatic compile error fixing, and optional VLM-based layout checking.

[!TIP] 🆕 2025-02 · Real-time Collaboration
Multi-user simultaneous editing is now available, powered by CRDT with automatic conflict resolution and cursor sync. Current version requires a server with a public IP; invite remote collaborators via token-based links.

---

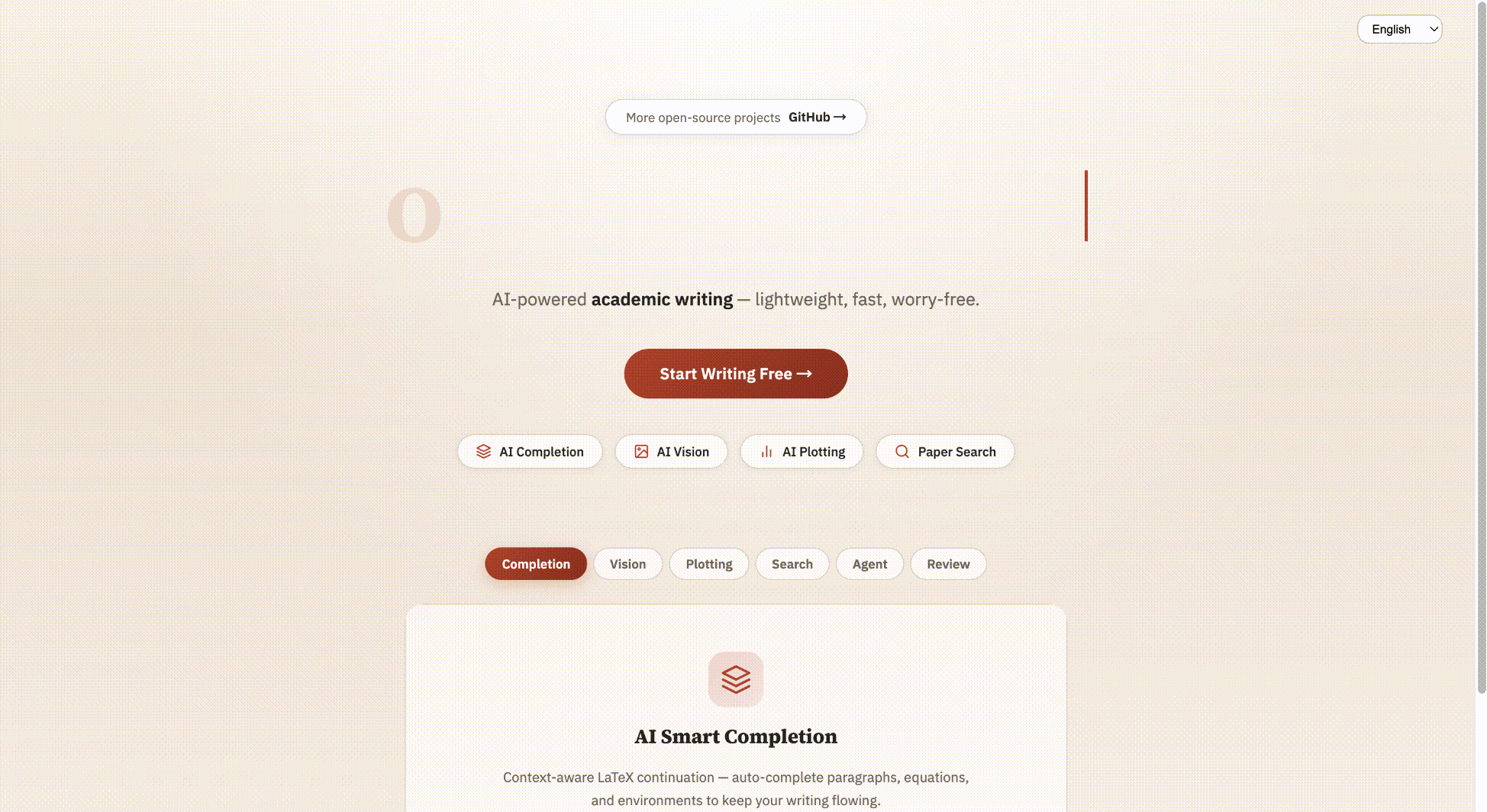

_{✨ Home preview: three-panel workspace + editor + preview}

---

✨ Core Features

OpenPrism is a local-first LaTeX + AI workspace for academic writing, optimized for fast editing, controlled changes, and privacy.

🤖 AI Assistant

• Chat mode: read-only Q&A
• Agent mode: generate diffs for confirmation
• Tools mode: multi-step tools + multi-file edits
• Tasks: polish, rewrite, restructure, translate, custom
• Autocomplete: Option/Alt + / or Cmd/Ctrl + Space, Tab to accept

✍️ Compile & Preview

• Engines: TexLive / Tectonic / Auto fallback
• Preview toolbar: zoom, fit width, 100%, download PDF
• Compile log: error parsing + one-click diagnose + jump to error
• Views: PDF / Figures / Diff

📚 Template System

• Built-ins: ACL / CVPR / NeurIPS / ICML
• Conversion: one-click template switch with content preserved

🔄 Template Transfer

• Dual mode: Legacy (LaTeX→LaTeX) and MinerU (PDF→Markdown→LaTeX)
• MinerU integration: parse PDF via MinerU API, extract Markdown + images, then fill into target template
• LLM-powered migration: AI analyzes source/target structure, drafts transfer plan, and applies content mapping
• Auto compile fix: automatically detect and fix LaTeX compilation errors with retry loop
• VLM layout check: optional visual layout validation using VLM to detect overflow, overlap, and spacing issues
• Asset handling: automatic copy of images, bib files, and style files from source to target

🗂️ Project Management

• Projects panel: manage multiple projects
• File tree: create/rename/delete/upload/drag
• BibTeX: quick create references.bib

⚙️ Configuration

• LLM Endpoint: OpenAI-compatible, supports custom base_url
• Local storage: settings saved to browser localStorage
• TexLive config: customizable TexLive resources
• Language switch: toggle 中文/English in the top bar

🔍 Search & Reading

• WebSearch: online search with summaries
• PaperSearch: academic paper search with citation info

📊 Charts & Recognition

• Table-to-chart: generate charts directly from tables
• Smart recognition: formulas and charts auto-detected

📝 Peer Review

• AI Quality Check: automated paper quality assessment
• Full Review Report: generate detailed reviewer-style review comments
• Consistency Check: terminology and symbol consistency detection
• Missing Citations: find statements that need citations
• Compile Log Summary: summarize compile errors and fix suggestions

👥 Real-time Collaboration

• Multi-user editing: multiple users edit the same document simultaneously with real-time sync
• Cursor & selection sync: each user’s cursor displayed in a distinct color, visible in real time
• Online user list: collaboration panel shows currently connected users and their status
• Invite to collaborate: invite others via link or token to join the editing session

---

🎨 Showcase

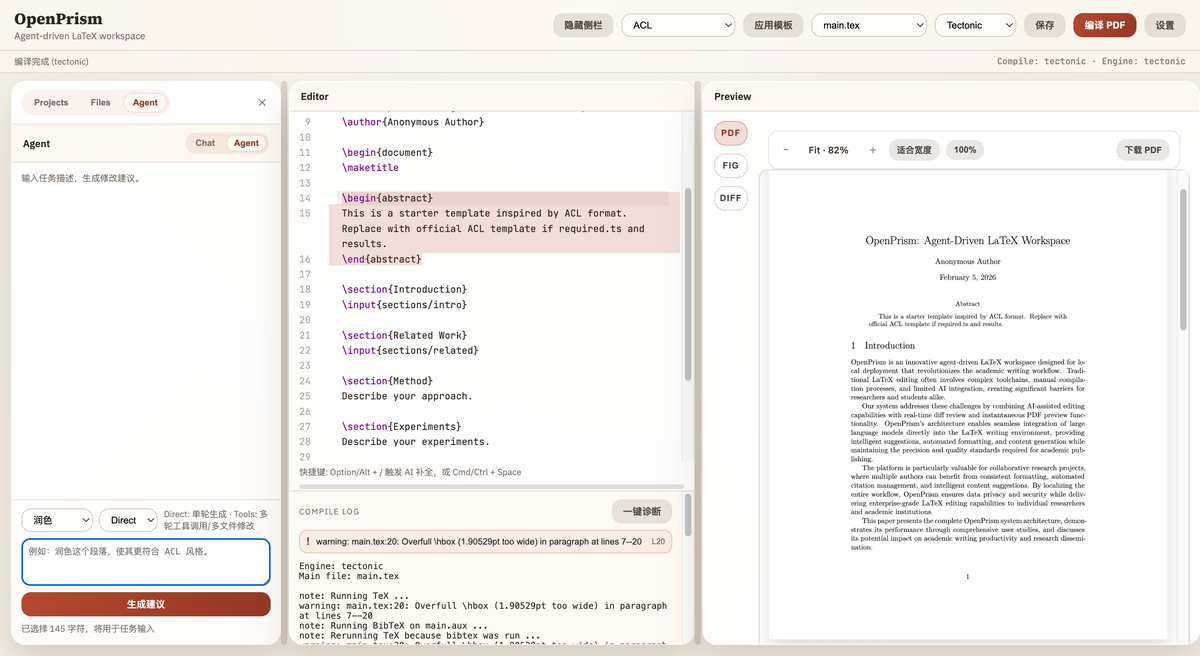

🖥️ Three-Panel Workspace

_{✨ AI Assistant | LaTeX Editor | PDF Preview}

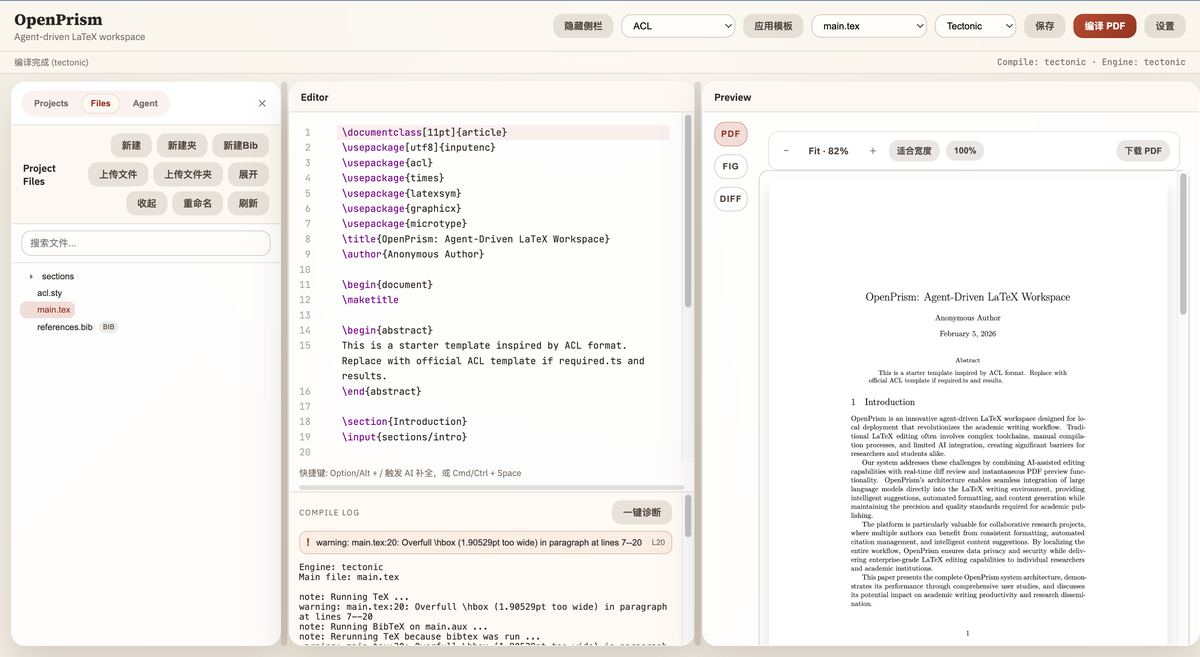

✍️ Editor View

_{✨ Synchronized editing and preview}

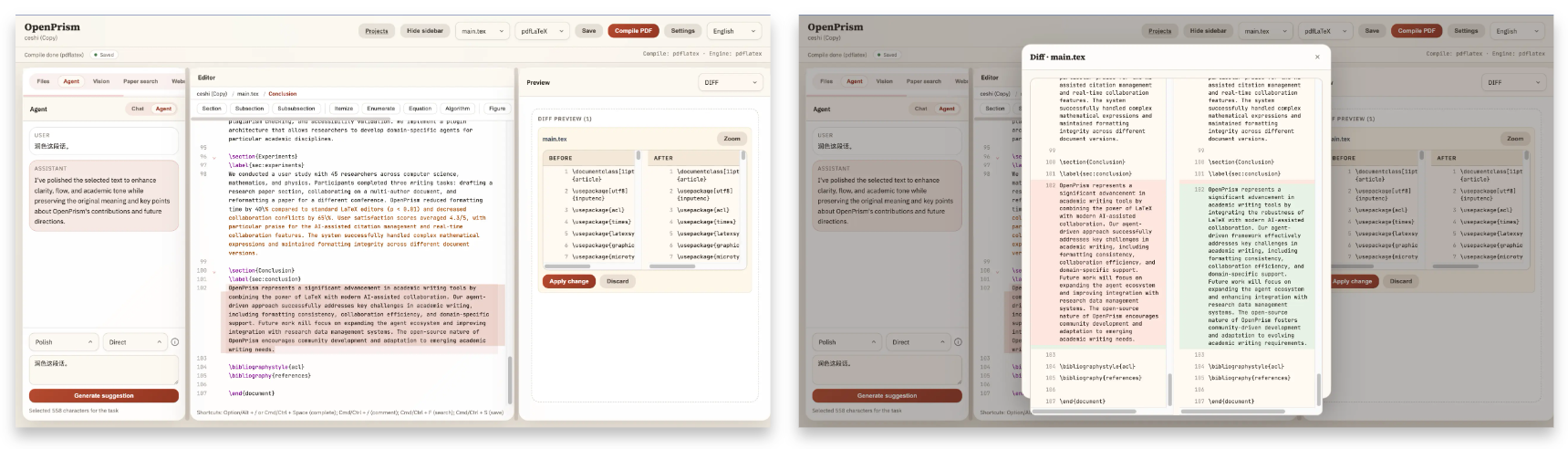

🤖 Agent Mode

_{✨ Generate diff suggestions for review}

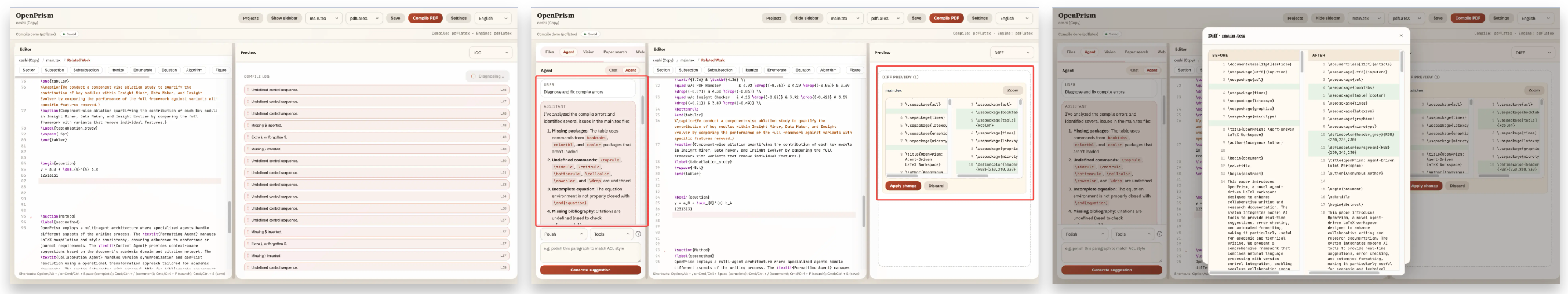

🧪 One-Click Diagnose

_{✨ Parse compile errors and jump to locations}

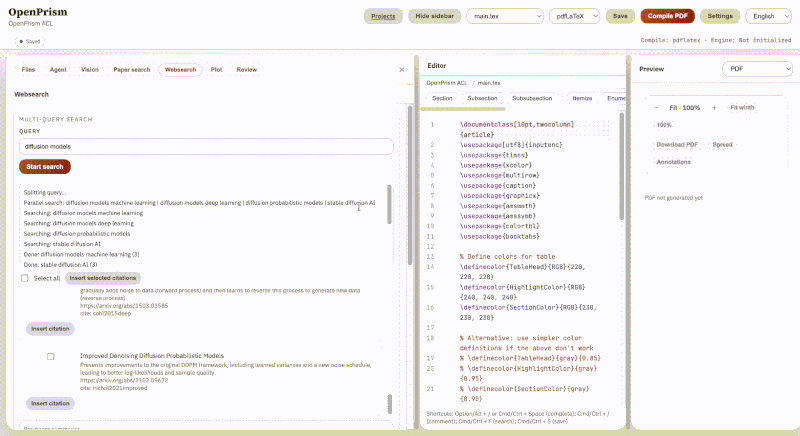

🌐 WebSearch

_{✨ Online search with concise summaries}

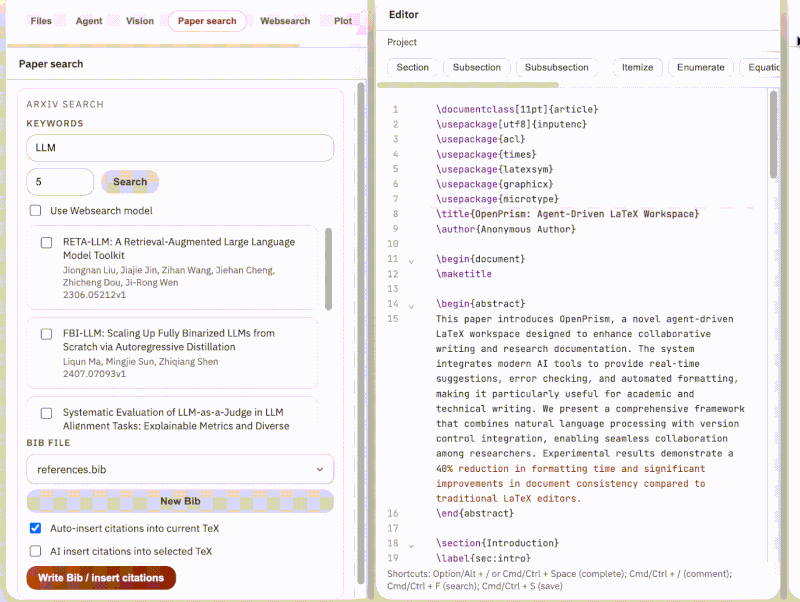

📄 PaperSearch

_{✨ Academic search and citation info}

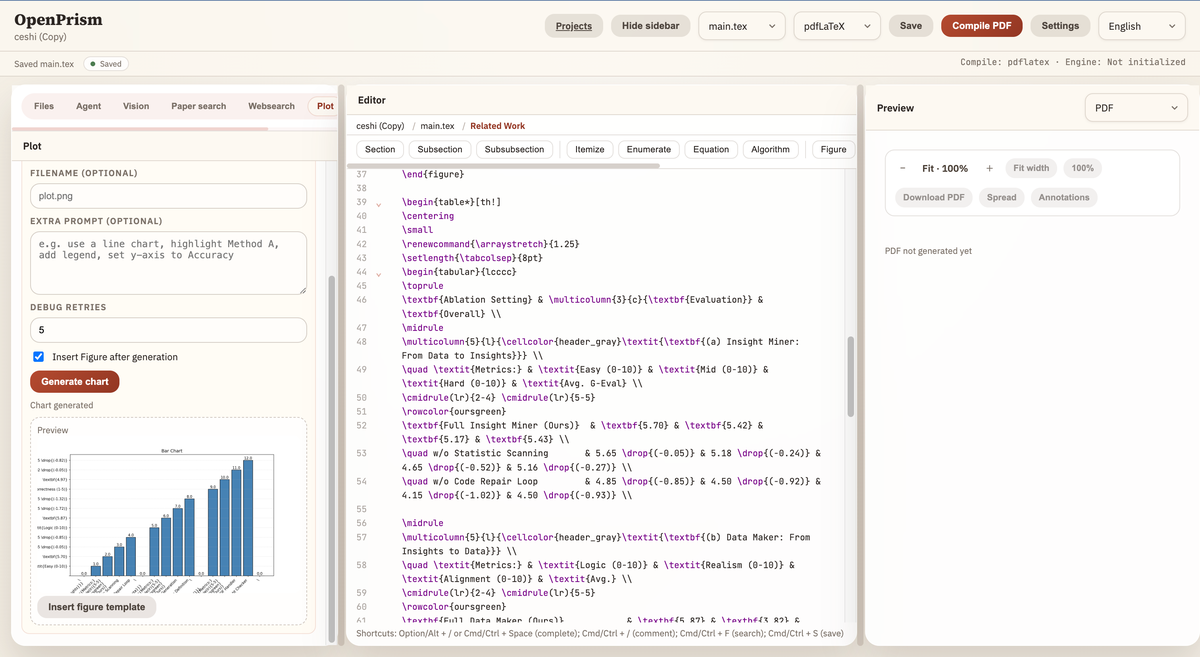

📊 Table-to-Chart

_{✨ Turn tables into charts in one step}

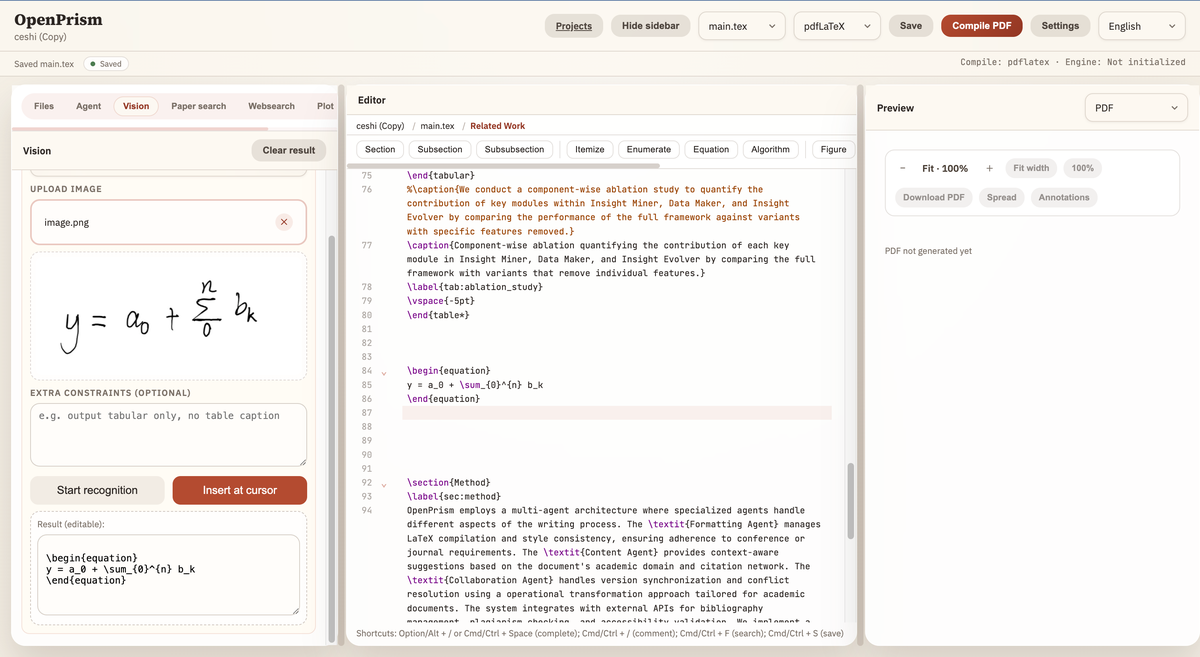

🧠 Formula/Chart Recognition

_{✨ Recognize structures for editable outputs}

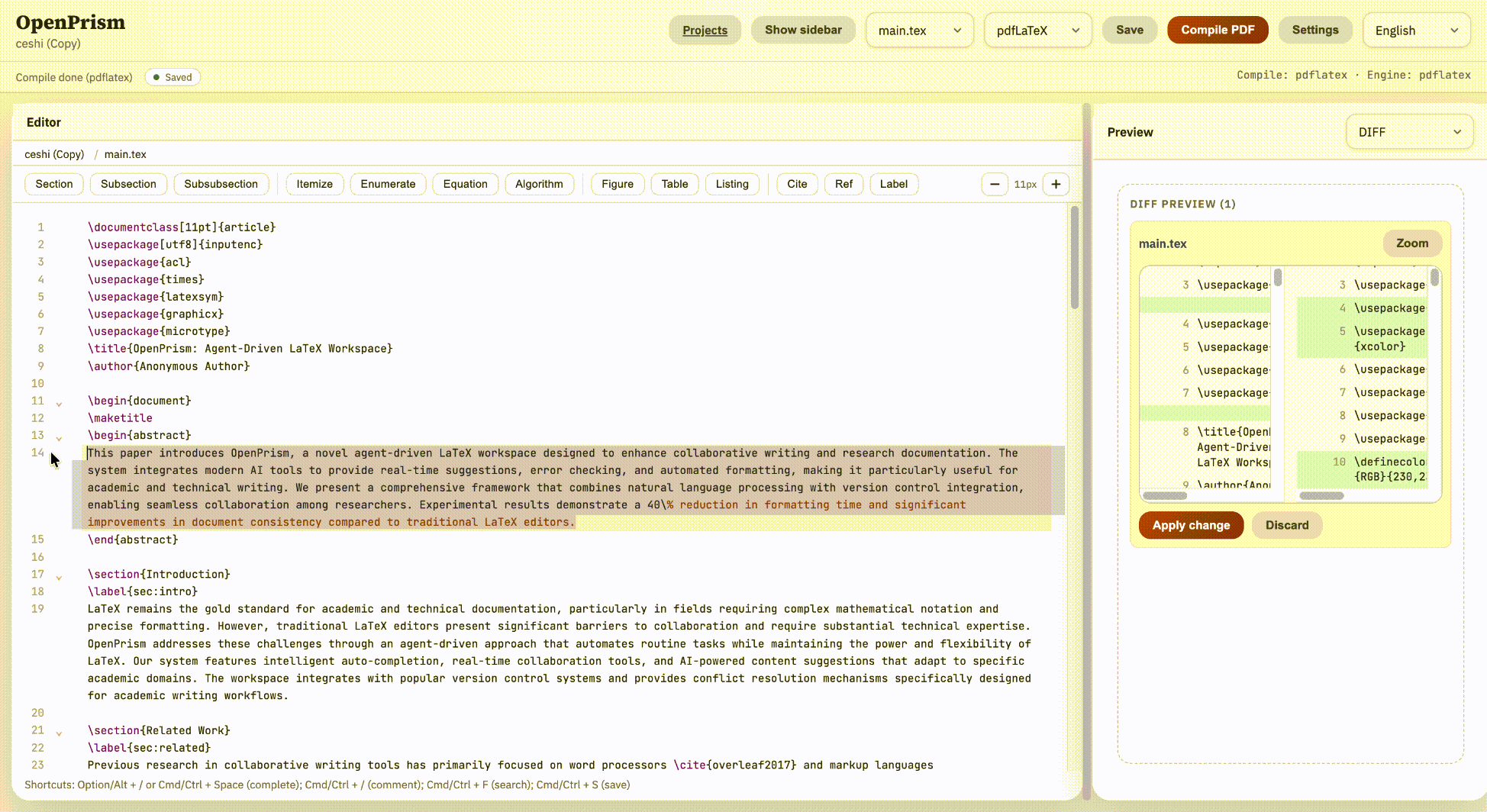

🔧 AI Autocomplete

_{✨ Option/Alt + / to trigger, Tab to accept}

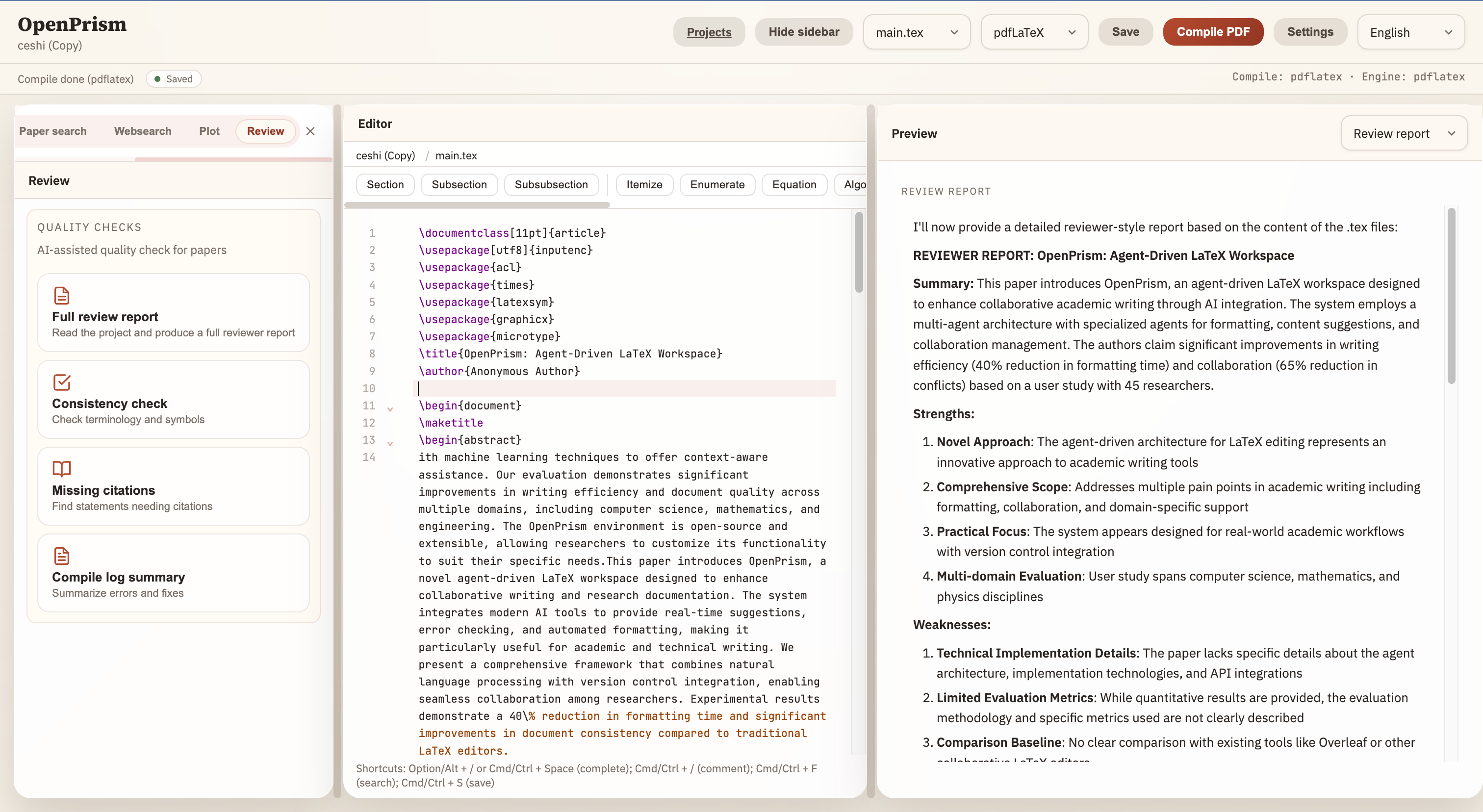

📝 Peer Review

_{✨ AI Quality Check: Review Report / Consistency Check / Missing Citations / Compile Summary}

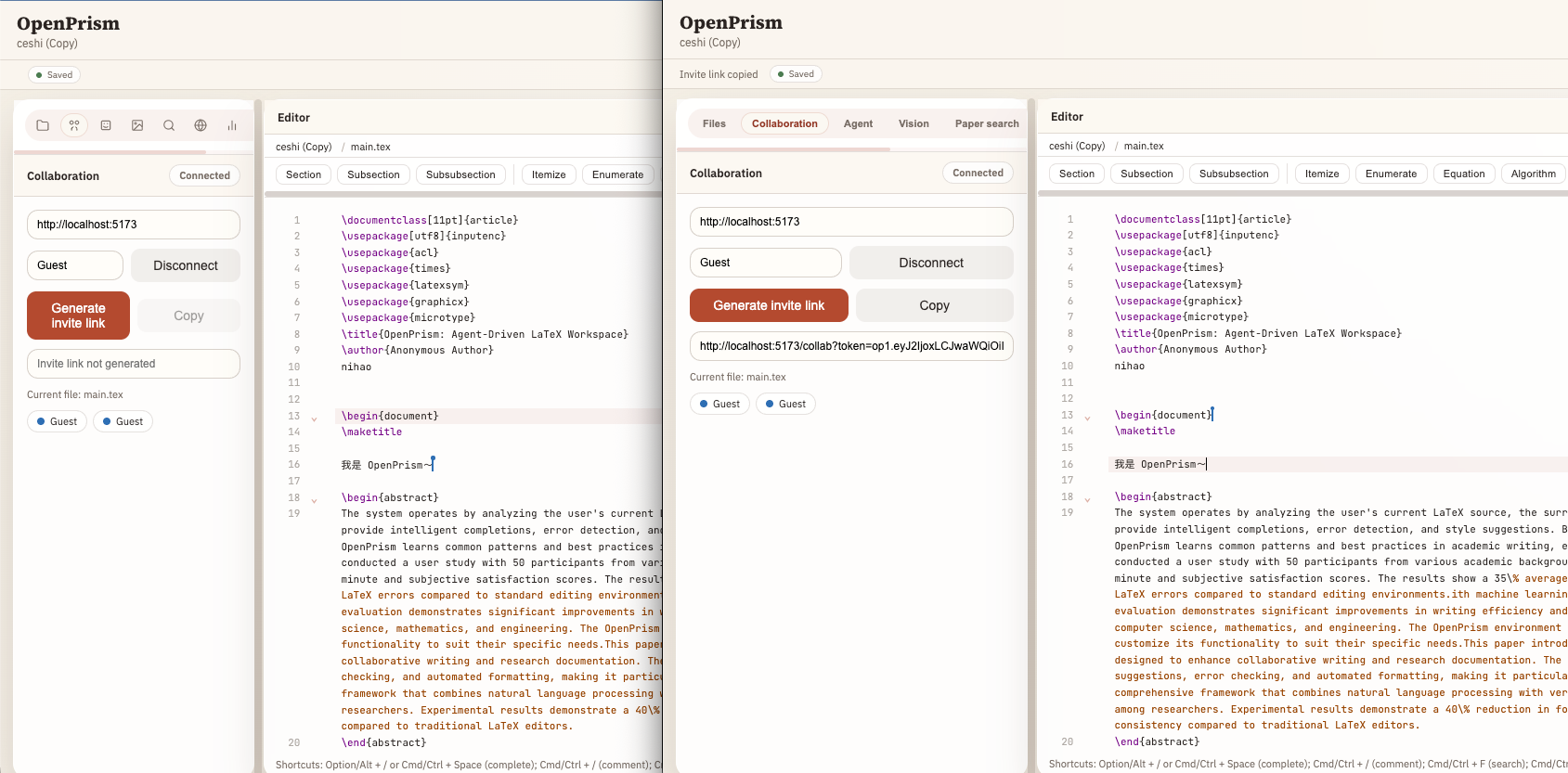

👥 Real-time Collaboration

_{✨ Multi-user real-time collaborative editing with cursor sync and online user management}

---

🚀 Quick Start

📋 Requirements

Basic Environment

• Node.js >= 18.0.0
• npm >= 9.0.0
• OS: Windows / macOS / Linux

LaTeX Compilation Environment (Required)

OpenPrism requires a LaTeX engine to generate PDFs. Choose one of the following options based on your OS:

Option 1: TexLive (Recommended)

• Linux (Ubuntu/Debian):

  sudo apt-get update
  sudo apt-get install texlive-full


• Linux (CentOS/RHEL):

  sudo yum install texlive texlive-*


• macOS:

  brew install --cask mactex


• Windows: Download TexLive installer

Option 2: Tectonic (Lightweight)

• Linux/macOS:

  curl --proto '=https' --tlsv1.2 -fsSL https://drop-sh.fullyjustified.net | sh


• Windows: Download Tectonic installer

Note: TexLive full installation is ~5-7GB, Tectonic is lighter but with fewer features. TexLive is recommended for Linux servers.

📦 Install & Run

Development Deployment

# 1. Clone repository
git clone https://github.com/OpenDCAI/OpenPrism.git
cd OpenPrism

# 2. Install dependencies
npm install

# 3. Start dev server (frontend + backend)
npm run dev

Access:

• Frontend: http://localhost:5173
• Backend: http://localhost:8787

Production Deployment

# 1. Build frontend and backend
npm run build

# 2. Start production server
npm start

Complete Linux Server Deployment Example

# 1. Install Node.js (Ubuntu example)
curl -fsSL https://deb.nodesource.com/setup_18.x | sudo -E bash -
sudo apt-get install -y nodejs

# 2. Install TexLive
sudo apt-get update
sudo apt-get install -y texlive-full

# 3. Verify installation
node --version  # Should show >= 18.0.0
pdflatex --version  # Should show TexLive version

# 4. Clone and deploy project
git clone https://github.com/OpenDCAI/OpenPrism.git
cd OpenPrism
npm install
npm run build

# 5. Configure environment variables (optional)
cat > .env << EOF
OPENPRISM_LLM_ENDPOINT=https://api.openai.com/v1/chat/completions
OPENPRISM_LLM_API_KEY=your-api-key
OPENPRISM_LLM_MODEL=gpt-4o-mini
OPENPRISM_DATA_DIR=/var/openprism/data
PORT=8787
EOF

# 6. Start service
npm start

# 7. Use PM2 for process management (recommended)
sudo npm install -g pm2
pm2 start npm --name "openprism" -- start
pm2 save
pm2 startup

---

⚙️ Configuration

Environment Variables

Create a .env file in the project root (optional):

# LLM Configuration
OPENPRISM_LLM_ENDPOINT=https://api.openai.com/v1/chat/completions
OPENPRISM_LLM_API_KEY=your-api-key
OPENPRISM_LLM_MODEL=gpt-4o-mini

# Data storage path
OPENPRISM_DATA_DIR=./data

# Backend service port
PORT=8787

# MinerU API Configuration (for PDF→MD→LaTeX transfer)
OPENPRISM_MINERU_API_BASE=https://mineru.net/api/v4
OPENPRISM_MINERU_TOKEN=your-mineru-token

LLM Configuration

OpenPrism supports any OpenAI-compatible endpoint, including custom base_url:

Method 1: Environment Variables

# .env file
OPENPRISM_LLM_ENDPOINT=https://api.openai.com/v1/chat/completions
OPENPRISM_LLM_API_KEY=sk-your-api-key
OPENPRISM_LLM_MODEL=gpt-4o-mini

Method 2: Frontend Settings Panel

• Click the “Settings” button in the frontend interface
• Fill in API Endpoint, API Key, and Model
• Configuration is automatically saved to browser localStorage

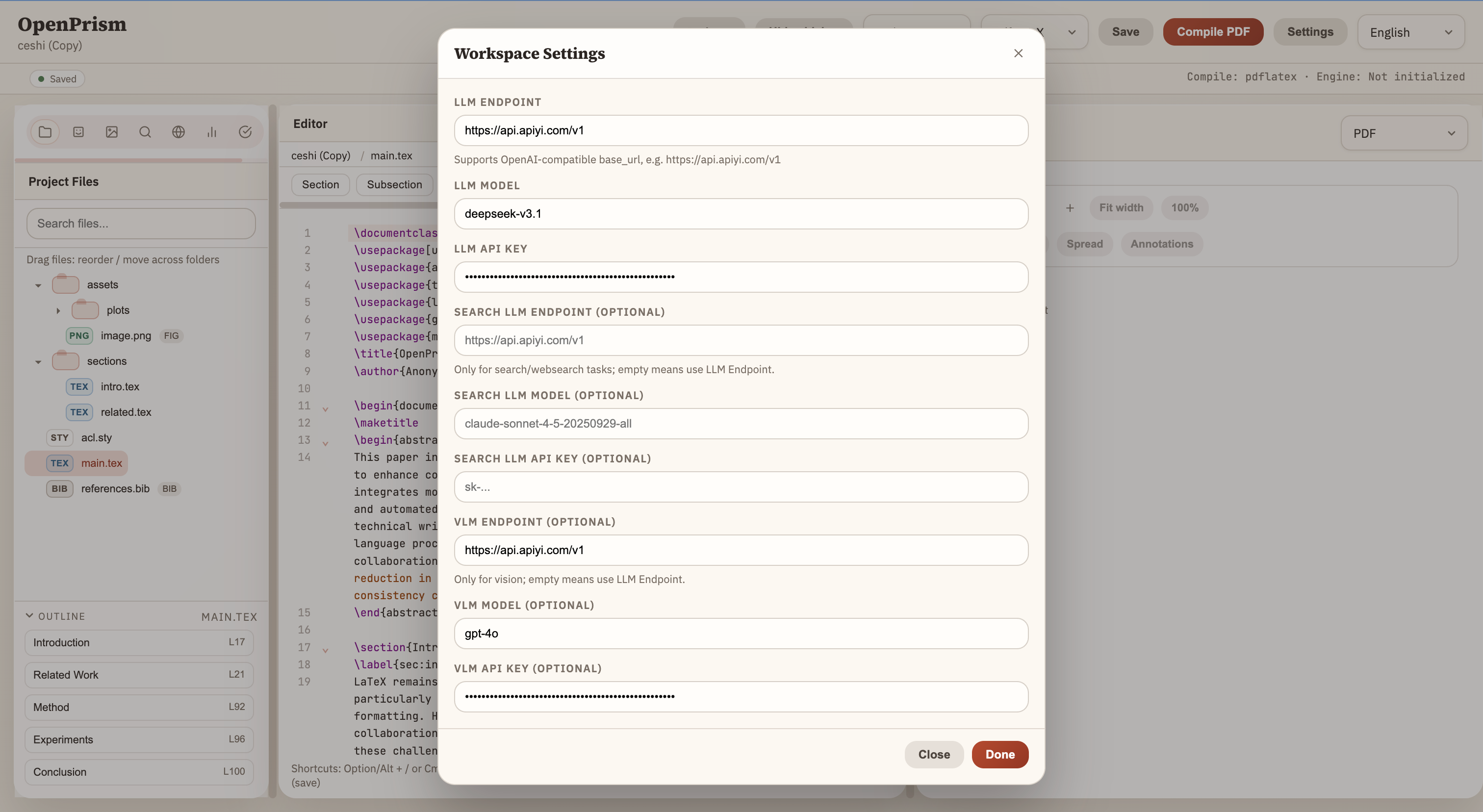

_{✨ LLM Configuration Settings Panel}

Supported Third-party Services:

• OpenAI: https://api.openai.com/v1
• Azure OpenAI: https://your-resource.openai.azure.com/openai/deployments/your-deployment
• Other compatible services: https://api.apiyi.com/v1

LaTeX Compilation Configuration

Supported Compilation Engines:

• pdflatex - Standard LaTeX engine
• xelatex - Supports Unicode and Chinese
• lualatex - Supports Lua scripting
• latexmk - Automated build tool
• tectonic - Modern lightweight engine

Configuration Method:

1. Select compilation engine in frontend “Settings” panel
2. Set to “Auto” for automatic fallback to available engines
3. Customize TexLive resource path

Data Storage Configuration

Default data storage is in ./data directory, can be modified via environment variable:

# Custom data directory
OPENPRISM_DATA_DIR=/var/openprism/data

Directory Structure:

data/
├── projects/           # User projects
│   ├── project-1/
│   │   ├── main.tex
│   │   └── references.bib
│   └── project-2/
└── templates/          # Template cache

---

👥 Collaboration Guide

OpenPrism includes a built-in real-time collaboration system based on CRDT (Yjs) + WebSocket, allowing multiple users to edit the same document simultaneously without any third-party service.

Collaboration Environment Variables

Add the following to your .env file:

# Token signing secret (must change for production)
OPENPRISM_COLLAB_TOKEN_SECRET=your-secure-random-string

# Require token for collaboration (default: true, set false for local dev)
OPENPRISM_COLLAB_REQUIRE_TOKEN=true

# Token TTL in seconds (default: 86400 = 24 hours)
OPENPRISM_COLLAB_TOKEN_TTL=86400

How to Use

1. Deploy: Deploy OpenPrism to a server with a public IP, configure a domain and HTTPS
2. Generate invite: Click “Generate Invite Link” in the collaboration panel on the editor page
3. Share link: Send the generated link to your collaborator
4. Join: Collaborator opens the link, token is verified automatically, and they enter the editor
5. Edit together: Multiple cursors visible in real time, edits sync automatically, conflicts resolved by CRDT

Nginx Reverse Proxy (Recommended, For Public Servers)

Collaboration requires WebSocket. Nginx must be configured with upgrade headers: ```nginx server { listen 443 ssl; server_name your-domain.com; location / { proxy_pass http://127.0.0.1:8787; proxy_http_version 1.1; proxy_set_header Upgrade $http_upgrade; proxy_set_header Connection "upgrade"; proxy_set_header Host $host; } } ``` > **Tip**: Local access (127.0.0.1) bypasses token verification by default, suitable for local development.

No Public Server? Use Tunnel (ngrok)

You can collaborate remotely without a public server. OpenPrism has built-in tunnel support — one command exposes your local service to the internet. #### Quick Start (ngrok, Recommended) 1. Sign up for a free [ngrok](https://dashboard.ngrok.com/get-started/your-authtoken) account and get your authtoken 2. Run the following commands: ```bash export NGROK_AUTHTOKEN=your_token_here npm run tunnel:ngrok ``` 3. On startup, the terminal prints a public URL. Share it with your collaborator: ``` OpenPrism started at http://localhost:8787 Tunnel active (ngrok): Public URL: https://xxxx.ngrok-free.app Share this URL to collaborate remotely! ``` 4. Your collaborator opens the URL in their browser and starts editing in real-time #### Other Tunnel Options | Option | Command | Notes | |--------|---------|-------| | localtunnel | `npm run tunnel` | Zero-config, but may be unstable | | Cloudflare Tunnel | `npm run tunnel:cf` | Requires [cloudflared](https://developers.cloudflare.com/cloudflare-one/connections/connect-apps/install-and-setup/installation/) installed | > **Note**: Tunnel is off by default. Regular `npm start` does not create a tunnel. You can also set it via env var: `OPENPRISM_TUNNEL=ngrok npm start`

---

🎯 Usage Guide (Quick)

1. Create Project: Create new project in Projects panel and select template
2. Write Paper: Edit LaTeX in Files tree
3. AI Edits: Switch to Agent / Tools, generate diff and confirm
4. Compile & Preview: Click “Compile PDF”, preview on right side
5. Export PDF: Click “Download PDF” in preview toolbar

---

📁 Project Structure

OpenPrism/
├── apps/
│   ├── frontend/           # React + Vite frontend
│   │   ├── src/
│   │   │   ├── app/App.tsx    # Main application logic
│   │   │   ├── app/TransferPanel.tsx  # Template transfer UI
│   │   │   ├── api/client.ts  # API calls
│   │   │   └── latex/         # TexLive integration
│   └── backend/            # Fastify backend
│       └── src/
│           ├── index.js       # API / compile / LLM proxy
│           ├── routes/transfer.js  # Transfer API endpoints
│           └── services/
│               ├── mineruService.js        # MinerU API integration
│               └── transferAgent/          # LangGraph transfer workflows
│                   ├── graph.js            # Legacy transfer graph
│                   ├── graphMineru.js       # MinerU transfer graph
│                   ├── state.js            # Transfer state schema
│                   └── nodes/              # Workflow nodes
├── templates/              # LaTeX templates (ACL/CVPR/NeurIPS/ICML)
├── data/                   # Project storage directory (default)
└── README.md

---

🗺️ Roadmap

Feature	Status	Description
👥 Real-time Collaboration		Multi-user real-time editing with cursor sync and online user management (currently requires a server with public IP)
🌐 Serverless Collaboration		Local collaboration without a public server: ① built-in tunnel integration (ngrok / Cloudflare Tunnel) to expose local services in one click; ② WebRTC-based P2P direct connection without third-party relay
🔍 Enhanced WebSearch		Integrate third-party Search APIs (e.g. Google / Baidu / SerpAPI) for improved search quality and coverage
📚 Template Transfer (Dual Mode)		Legacy (LaTeX→LaTeX) and MinerU (PDF→MD→LaTeX) dual-mode template transfer with LLM-powered migration, auto compile fix, and VLM layout check
📸 Version Snapshots & Rollback		Project version management with snapshot saving and one-click rollback
📖 Citation Search Assistant		Auto-search related papers and generate BibTeX citations

---

🤝 Contributing

Welcome to submit Issues or PRs:

1. Fork the repository
2. Create a new branch
3. Commit your changes
4. Submit a PR

Development commands:

npm run dev
npm run dev:frontend
npm run dev:backend
npm run build

---

📄 License

MIT License. See LICENSE.

---

🙏 Acknowledgments

• Tectonic
• CodeMirror
• PDF.js
• LangChain
• React / Fastify

---

**If this project helps you, please give us a ⭐️ Star!** [](https://github.com/OpenDCAI/OpenPrism/stargazers) [](https://github.com/OpenDCAI/OpenPrism/network/members)

_{Scan to join the community WeChat group}

Made with ❤️ by OpenPrism Team
